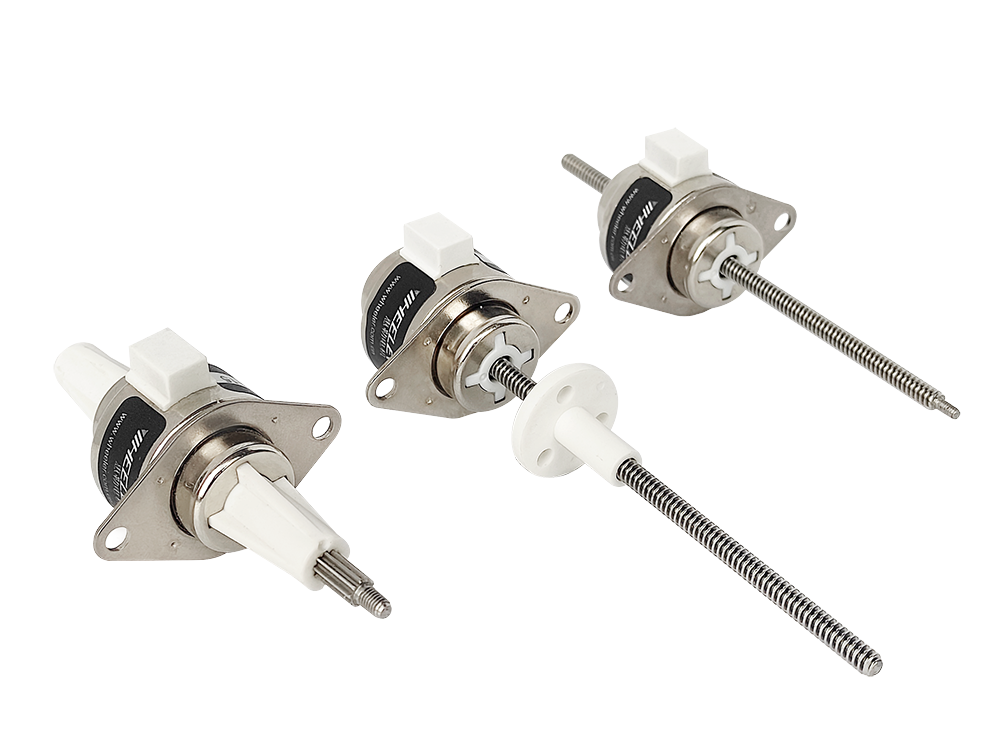

| Specification: | |||||

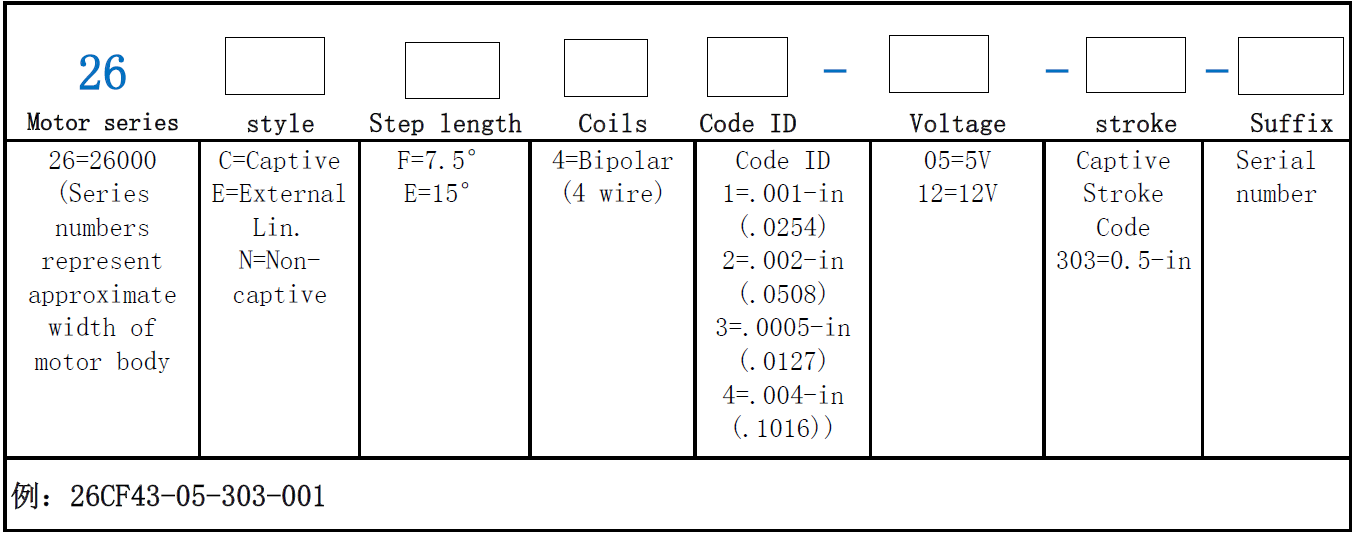

| Part No. |

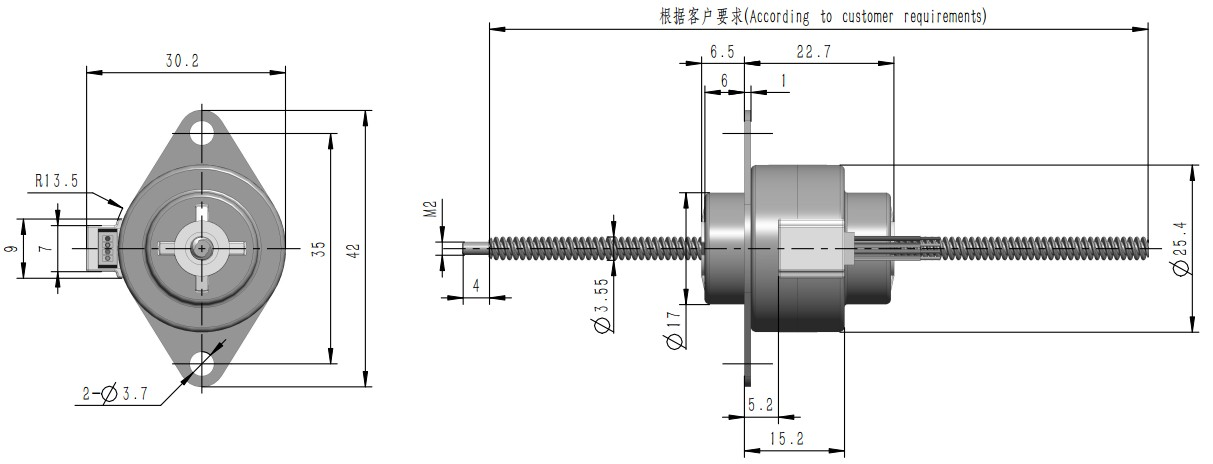

Non-captive | 26NF4(X)-V | 26NE4(X)-V | ||

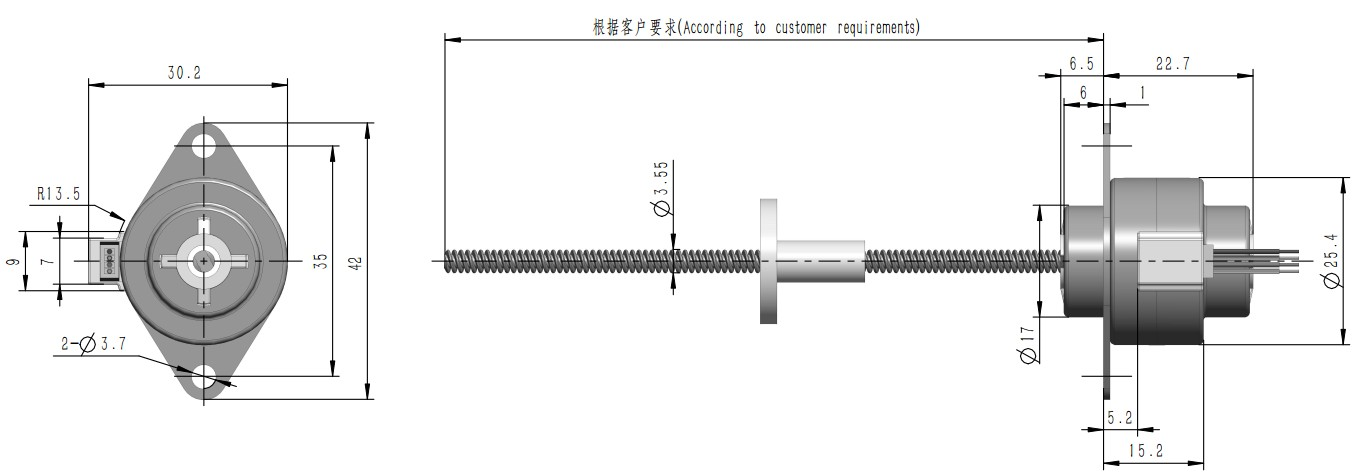

| External Lin. | 26EF4(X)-V | 26EE4(X)-V | |||

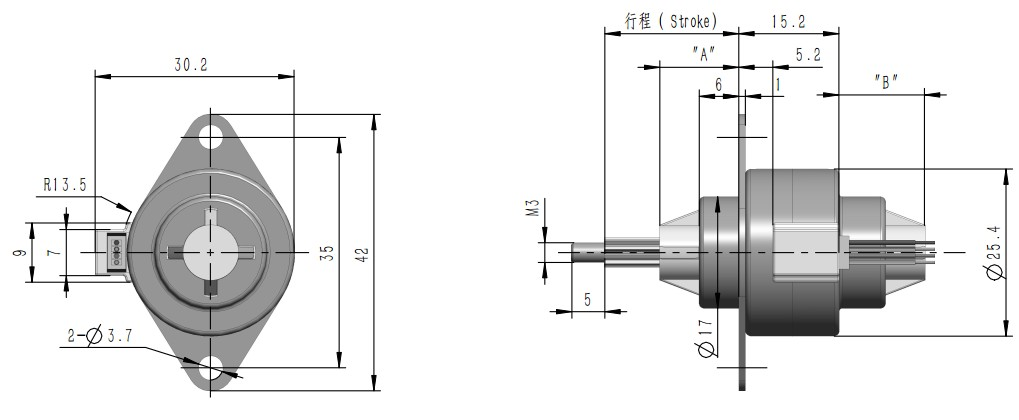

| Captive | 26CF4(X)-V | 26CE4(X)-V | |||

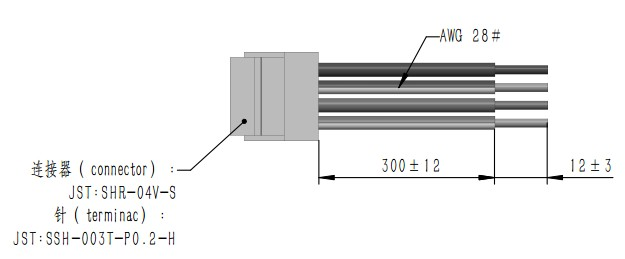

| Wiring | Units | Bipolar | |||
| Step Angle | Degree |
7.5° |
15° |
||
| Winding Voltage | VDC |
5 |
12 |
5 |
12 |
| Current/Phase | A rms | 0.385 | 0.16 | 0.385 | 0.16 |
| Resistance/Phase | ohms（Ω） | 13 | 72 | 13 | 72 |
| Inductance/Phase | mH | 10.6 | 60 | 10.6 | 48 |
| Power Input | Watts | 3.85 | |||
| Rotor Inertia | gc㎡ | 1.07 | |||
| Insulation Class | Class B（75°C） | ||||
| Weight | oz (g) | 1.74（49） | |||
| Insulation resistance | MΩ | 20 | |||
| Stroke Code | Stroke(mm) | Size A(mm) | Size B(mm) |
| 302 | 12.7 | 11.99 | 12.99 |
| 303 | 18 | 17.28 | 18.28 |
| 304 | 25 | 24.26 | 25.26 |
| 305 | 31 | 30.25 | 31.25 |
